Future NDS-02J rotary TOSOKU DPN02J DPN02020J20R

FUTURE

NDS02J

NDS02J

Momentary

High quality digital code rotary switch (encode)  with knob, 13 models to choose.
Manufacturer: Future.

Features:
NDS Series with multiple switching functions are applicable to the machine tool’s
operation panel for axis selection, feed rate and override, etc.Solid metal housing and clear graduation.
With firm and skid-proof shafts.
Provide 15, 30, 13.85 degrees for options.
Include inhibit and parity signal to avoid error occurrence.
Metal (Gold) coating contact points for stable and highly effectiveness performance.
Waterproof design (IP65) and Built-in O-ring.
New design for easy installation.
Save wiring operation and Input signal point.

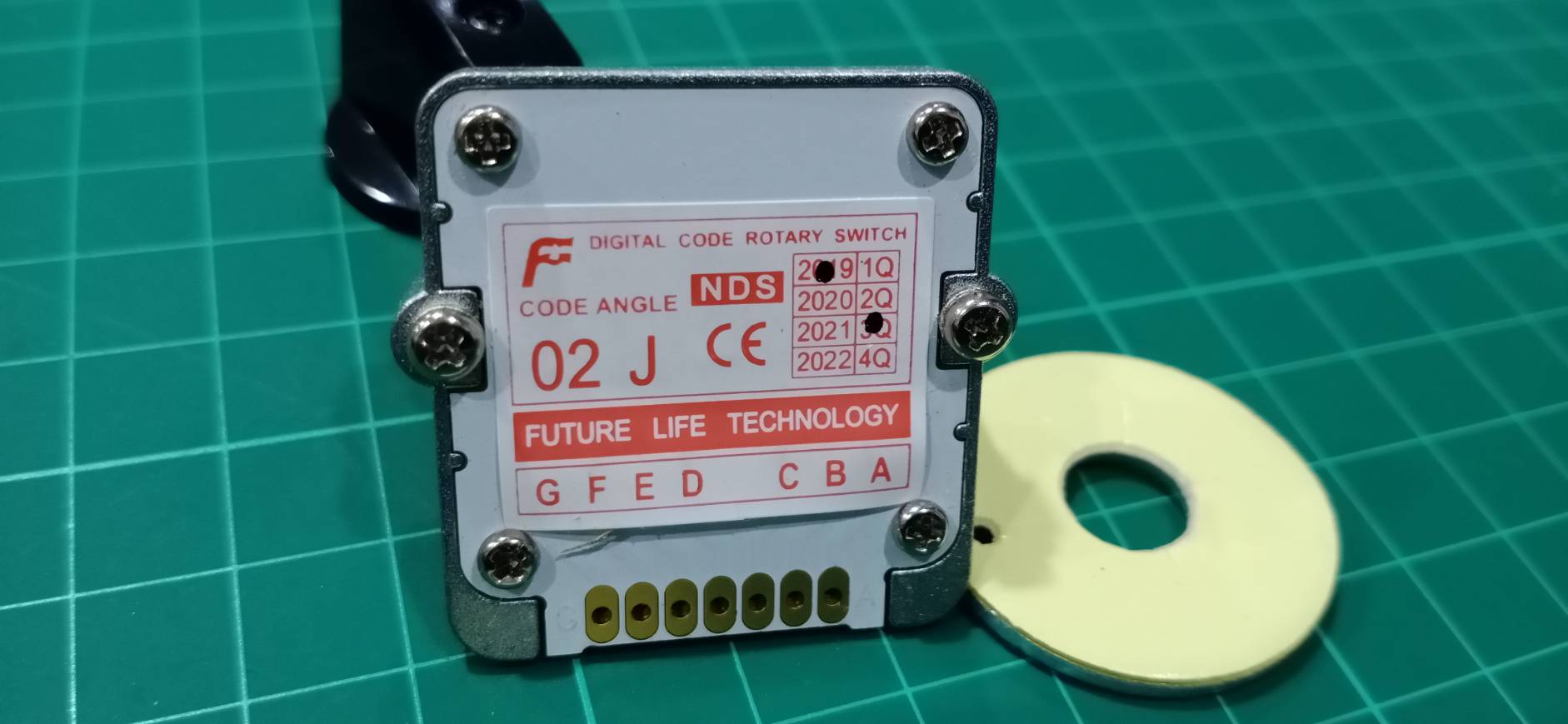

High quality digital code rotary switch (encode), with knob.
Manufacturer: Future.
Datasheet: [link removed by eBay]
Manufacturer model: NDS-02J.
Step angle / set position: 15 / 0 ~ 23.

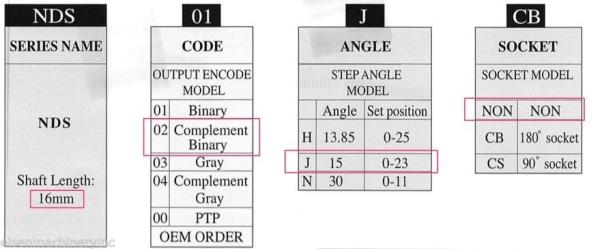

Output encode model: Complement Binary output with INH output, please see the following code table.

Features:
NDS Series with multiple switching functions are applicable to the machine tool’s
operation panel for axis selection, feed rate and override, etc.Solid metal housing and clear graduation.
With firm and skid-proof shafts.
Provide 15, 30, 13.85 degrees for options.
Include inhibit and parity signal to avoid error occurrence.
Metal (Gold) coating contact points for stable and highly effectiveness performance.
Waterproof design (IP65) and Built-in O-ring.
New design for easy installation.
Save wiring operation and Input signal point.
Other code types, please visit my store.

SKU:  SW-NDS/02J-1
